THE TRAPEZE REIMAGINED

A NEW ANGLE ON AUDIO PERFECTION

In 1979 Ole Klifoth launched the Trapeze. In doing so, he created the blueprint for all Audiovector speakers to come – including the pioneering focus on linear dynamics and linear phase through a true 6 dB per octave crossover. Fast forward 45 years and the new Trapeze Reimagined is based on the same principles as the original heritage model. And brought up to date with the very best, most innovative technology available.

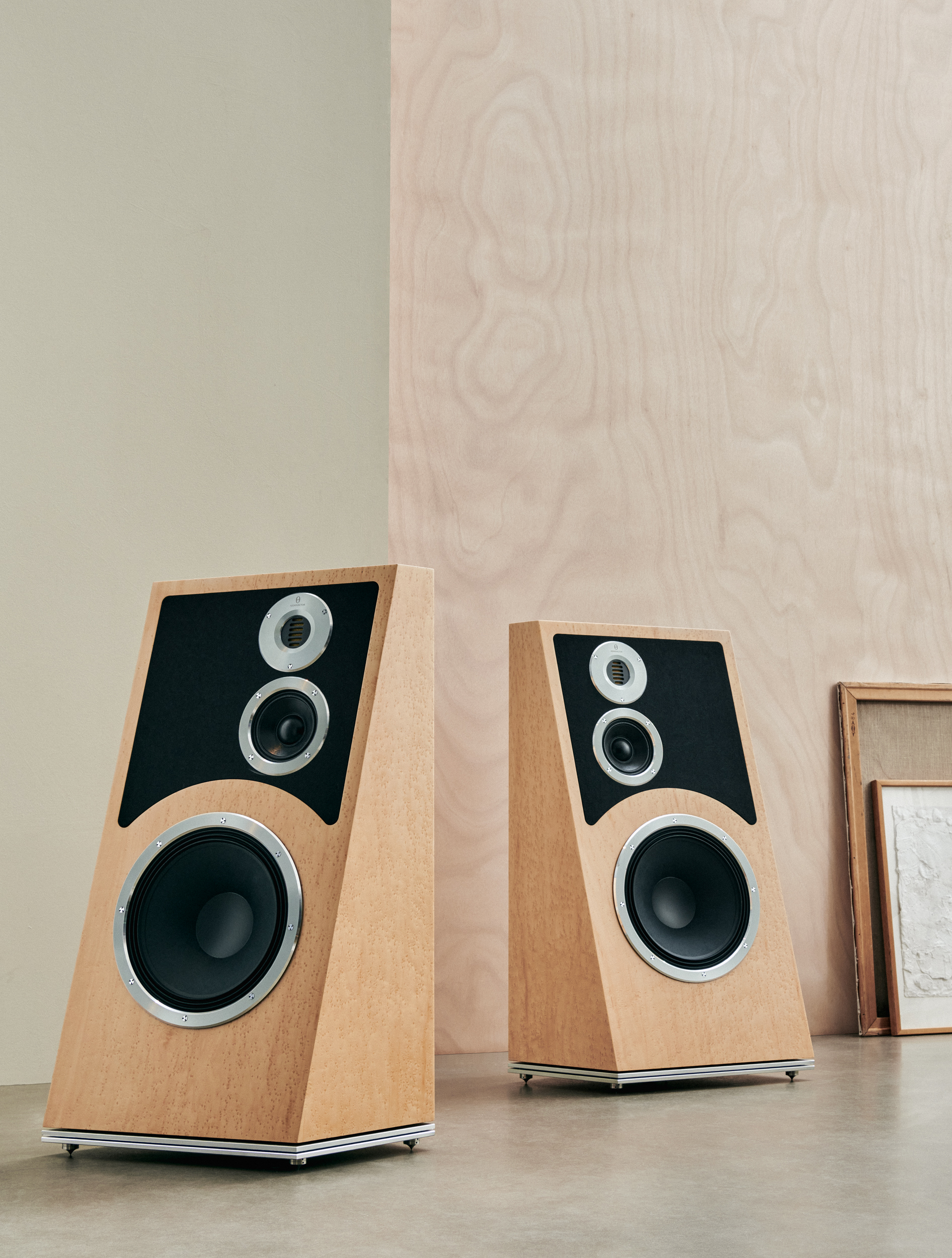

A homage to the company’s very first loudspeaker. The embodiment of our passion, innovation, and love of music. And quite simply, a thing of beauty. A 3-way floor standing design, the Trapeze Reimagined features a proprietary 12-inch high-power mid/bass driver. A 5-inch-high speed midrange. And the only AMT-tweeter on the market that stays true to the original design from audio genius Dr. Oscar Heil.

The three drivers combine to achieve an even power, flat frequency response to match the famous Brûel & Kjaer ideal room response. A diffraction absorbing felt area around the treble and midrange drivers helps to create a rare and natural soundstage: prepare to be transported to the atmospheric heart of a live event. The low frequency tuning adds weight and drama to any music.

The extremely low distortion of the bass driver allows unusually natural and dynamic vocals as well as a beautifully rich sound without boom or bloom that just sounds so right. No problems with bass, midrange, or treble. Just an open, rich, musical, and rhythmic reproduction of all kinds of music in all kinds of settings.

THE TRAPEZE REIMAGINED

A NEW ANGLE ON AUDIO PERFECTION

Colours and Veneers

At Audiovector we only use carefully selected real wood veneers.
We offer a wide variety of custom painted finishes which are painted in Denmark.

Standard matte finishes: Nordic Oak, Black Ash, Italian Walnut, White Silk.

BLACK CLOTH GRILLE INCLUDED
CUSTOM PIANO COLOURS ON REQUEST

Trapeze concepts

Double Mechanical Decoupling

Diffraction Control Concept

Damping Factor Adjustment

No Standing Waves

Low Compression Concept

Soundstage Enhancement Concept

No Energy Storage

NCS Molecular realignment

Freedom grounding concept

SPECIFICATIONS TRAPEZE Ri

FREQUENCY RESPONSE

23-53 kHz

SENSITIVITY

92,5 dB/W/m

Average Impedance

8 Ohms

Minimum Impedance

6.5 Ohm at 20 kHz

Sensitivity

88 dB SPL at 1m for 2.83Vrms input

Distortion

<0.2% THD at 90 dB SPL

POWER HANDLING

450 W

CROSSOVER FREQUENCIES

500 and 3.000 Hz

Bass unit

High Power 12-inch with 4” Voice coil

Mid Unit

High resolution 5” Neodynium

HF UNIT

3800 mm2 Audiovector SEC AMT

TERMINALS

High Current Gold-plated copper/ brass binding posts for 4mm plugs or spades

Dimensions cm (footprint) Height/Width/Depth

87,5 x 42 x 43,5

We reserve the right to change specifications without prior notice

	DCC – Diffraction Control Concept. A thick layer of natural felt around the mid-and treble drivers absorbs reflected energy and make the drivers act as point sources. This results in a holographic 3-dimensional soundstage.
	DMD - Double Mechanical Decoupling. The Trapeze Reimagined uses a 2 layer aluminum plinth with a combination of built-in decoupling via carbon steel ball bearings and stylish and efficient machined Audiovector spikes. This optimizes the speaker/floor interaction by reducing distortion to give a clean and precise sound.
	NSW - No Standing Waves. The original Trapeze pioneered the No Standing Waves principle. Standing waves are the enemy of perfect sound, because they introduce both distortion and energy loss. The lopsided Trapeze cabinet avoids these problems by creating the perfect conditions for the drivers.
	DFA – Damping Factor Adjustment. All amplifiers are different. Some have a high damping factor, some have a low damping factor. Audiovectors DFA principle makes it possible to adjust the speakers to the amplifiers characteristics. This brings us one step closer to the perfect sound.
	Low compression concept A technology which allows the membranes of the drivers to move freely under all kinds of demanding conditions. This means that your Audiovector speakers will stay faith-ful to whatever signal they are fed – no matter how loud and complicated the material.
	Soundstage enhancement concept This concept allows you to choose where you want to be positioned when you listen. This technology means the soundstage stays intact, wherever you are positioned. The sound fills a room in an incredible manner, giving the listener a realistic “live sound” experience.
	No energy Drive units sound best if they do not have to ‘carry’ the weight of the speaker cabinet to which they are fixed. This is a question of transient response. Inspired by the solutions from the Audiovector R 11 Arreté, we have managed to use the NES concept to achieve an even higher level of realism and open soundstage from our speakers.
	NCS molecular realigment Natural Crystal Structure is one of the many invisible technological improvementss of our Arreté models. By freezing components down to -238° C, the copper molecules realign themselves to their natural positions and will therefore reduce resistance. The result is a clear and more detailed sound quality.
	Freedom of grounding Audiovector Freedom is a revolutionary grounding technology, which addresses the movement induced distortion of and between the drive units in a loudspeaker. The currencies running between the chassis are being processed and dealt with through a new separate crossover, which routes the signal to the ground terminal of your wall socket or your grounded mains distributor. These currencies cause coloration and distortion between the drive units. By balancing and filtering these through a dedicated separate filter and by offering the possibility of connecting them to earth/ground, we achieve a clean, very accurate, much more realistic sound with low noise floor.

	Individual upgrade concept A technology which gives you the option to upgrade your speakers whenever you want. You can upgrade to a higher level or if your loudspeakers are replaced with a new improved model. This means that all Audiovector speakers are future proof.
	Low compression concept A technology which allows the membranes of the drivers to move freely under all kinds of demanding conditions. This means that your Audiovector speakers will stay faith-ful to whatever signal they are fed – no matter how loud and complicated the material.
	Soundstage enhancement concept This concept allows you to choose where you want to be positioned when you listen. This technology means the soundstage stays intact, wherever you are positioned. The sound fills a room in an incredible manner, giving the listener a realistic “live sound” experience.
	No energy Drive units sound best if they do not have to ‘carry’ the weight of the speaker cabinet to which they are fixed. This is a question of transient response. Inspired by the solutions from the Audiovector R 11 Arreté, we have managed to use the NES concept to achieve an even higher level of realism and open soundstage from our speakers.
	NCS molecular realigment Natural Crystal Structure is one of the many invisible technological improvementss of our Arreté models. By freezing components down to -238° C, the copper molecules realign themselves to their natural positions and will therefore reduce resistance. The result is a clear and more detailed sound quality.
	Freedom of grounding Audiovector Freedom is a revolutionary grounding technology, which addresses the movement induced distortion of and between the drive units in a loudspeaker. The currencies running between the chassis are being processed and dealt with through a new separate crossover, which routes the signal to the ground terminal of your wall socket or your grounded mains distributor. These currencies cause coloration and distortion between the drive units. By balancing and filtering these through a dedicated separate filter and by offering the possibility of connecting them to earth/ground, we achieve a clean, very accurate, much more realistic sound with low noise floor.
